Neumann/Geffell/RFT MKD MV101 Tube condenser microphone made in Germany in the 1950’s

NEUMANN GEFELL MV-101 "MKD" tube mic with 1" MK-102 (nickel) measurement capsule.
These are fantastic mics to use for recording! Very responsive and clean sounding, on the same level as B&K and Schoeps mics. The 1"(inch) original nickel MK-102 capsule has a flat frequency response from 10Hz up to 20kHz!

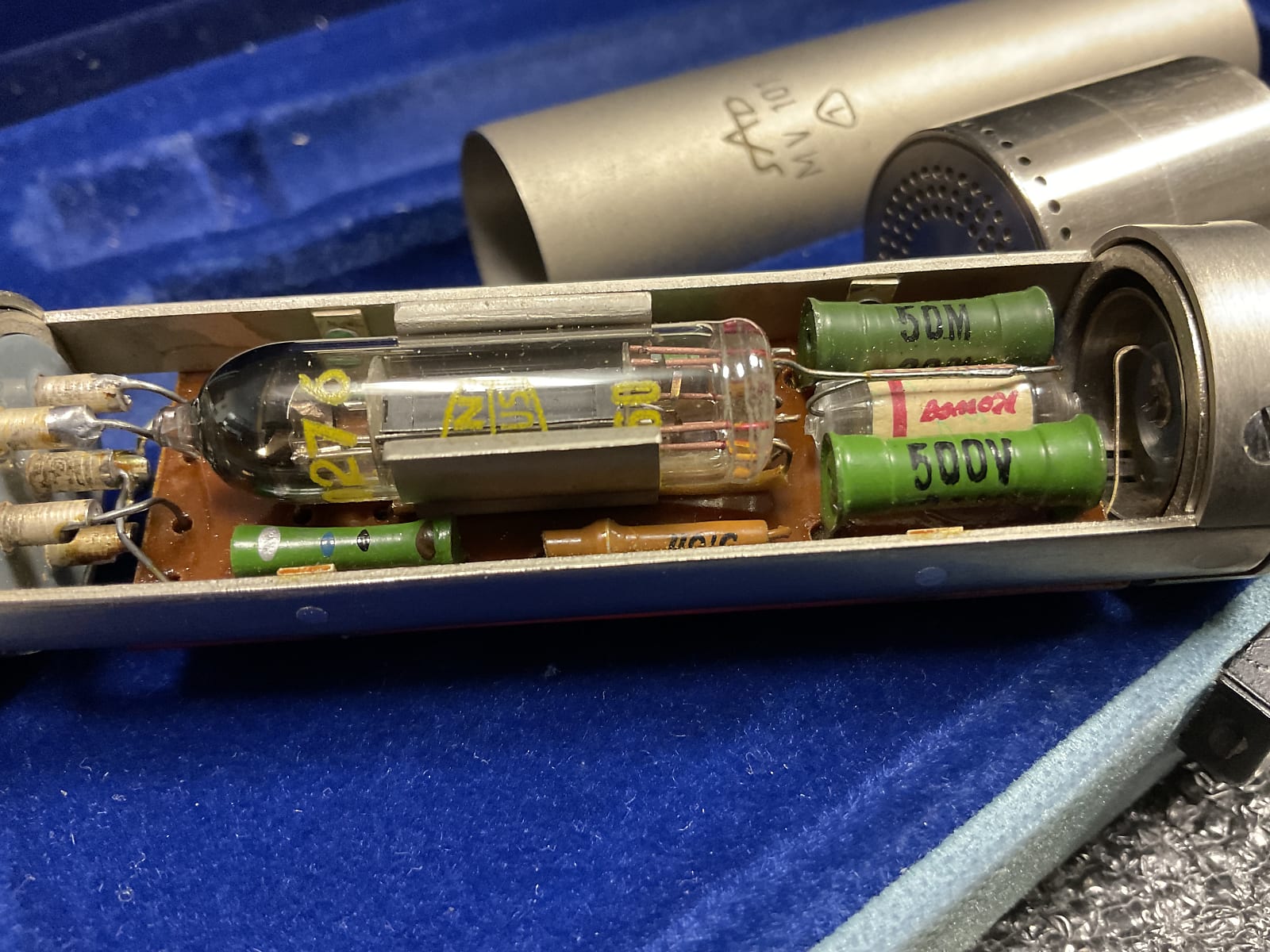

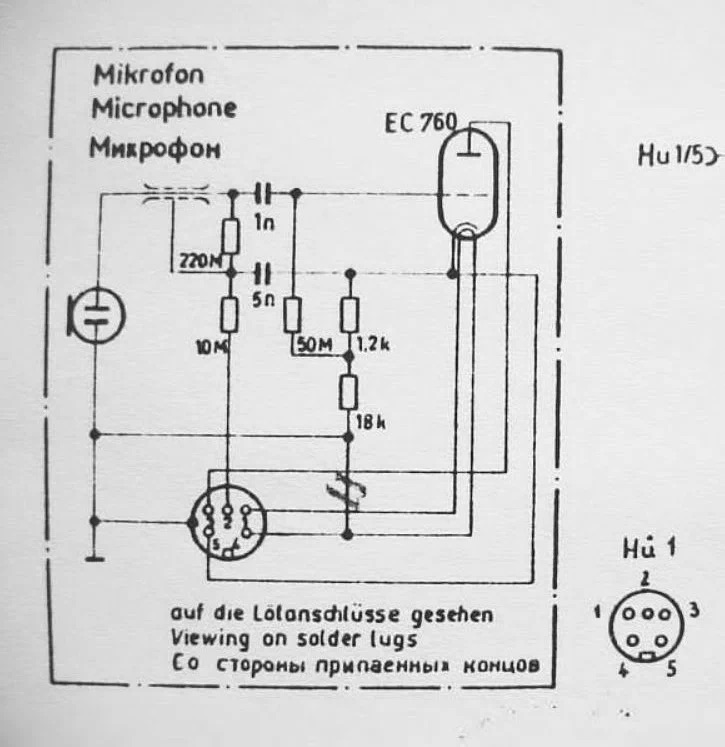

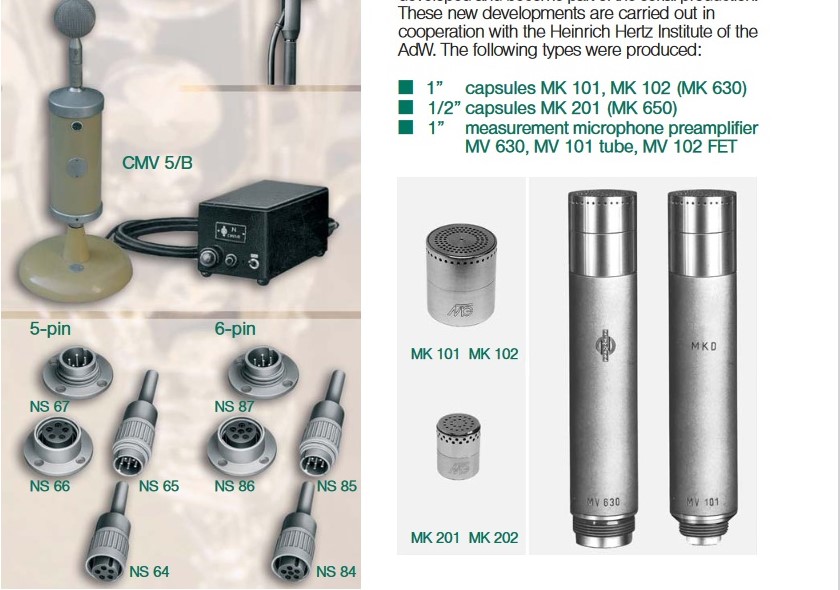

The MV 101 is a vacuum tube measurement microphone amplifier developed in cooperation with the Heinrich Hertz institute that can mount 1" capsules like the MK 101 or MK 102 attached via a metrical M 20 x 0,5 thread. It uses a EC 760 miniature vacuum tube. It was produced between 1951 and 1969. Includes wooden box. Requires MN 630 power supply unit.

– Capacitive pressure transducer, axial sound inlet

– Omnidirectional (spherical) pickup pattern, 200 Ohms

– Frequency response: 10Hz to 20,000Hz (-3dB), 50mV/Pa

– 1″ (24mm) MK102 nickel diaphragm capsule, max SPL: 146 dB

Tensioni di funzionamento

• Fornita mediante altra unità o unità principale. / 6,3 & 200 Volt

Dimensions: 1″ (25mm) in diameter, 4.7″ (125mm) long

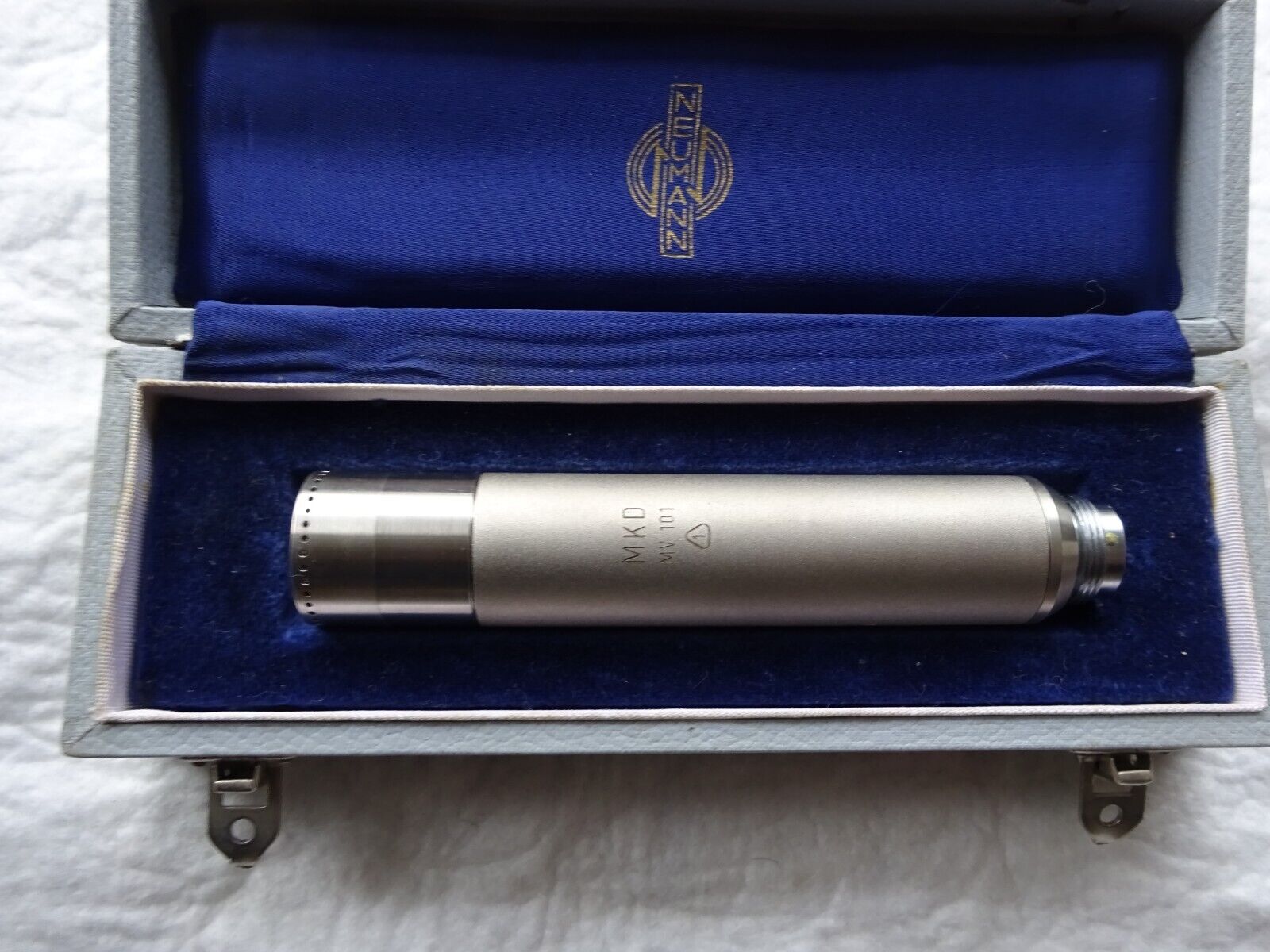

The mic comes in its original wooden protection case.
The set also includes a 12′(3.6m) microphone cable

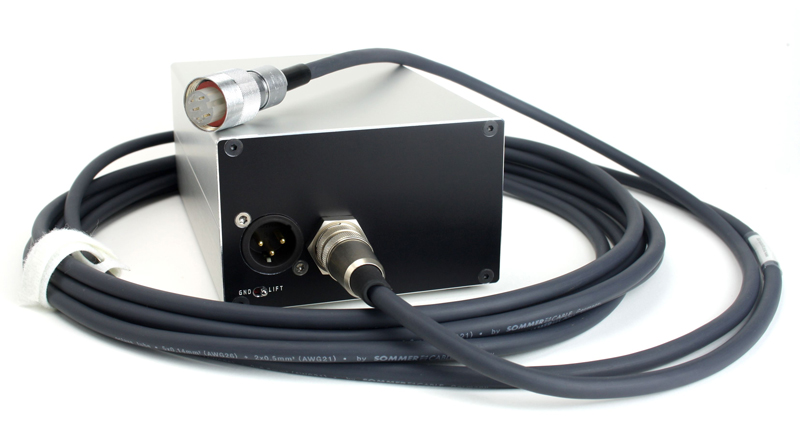

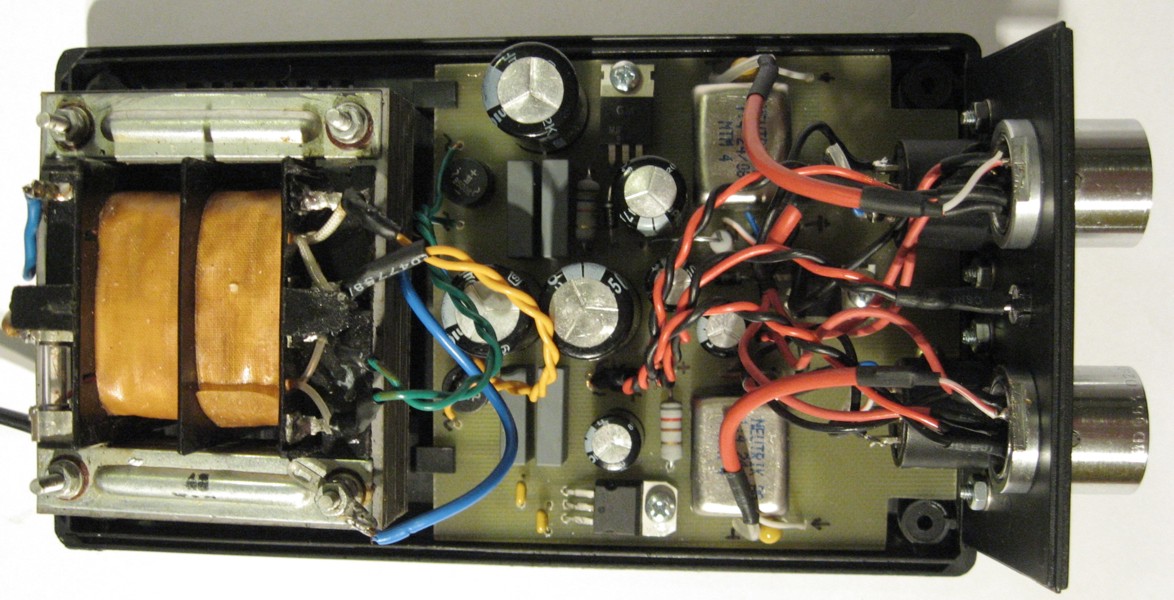

and a custom-made power supply unit (PSU).

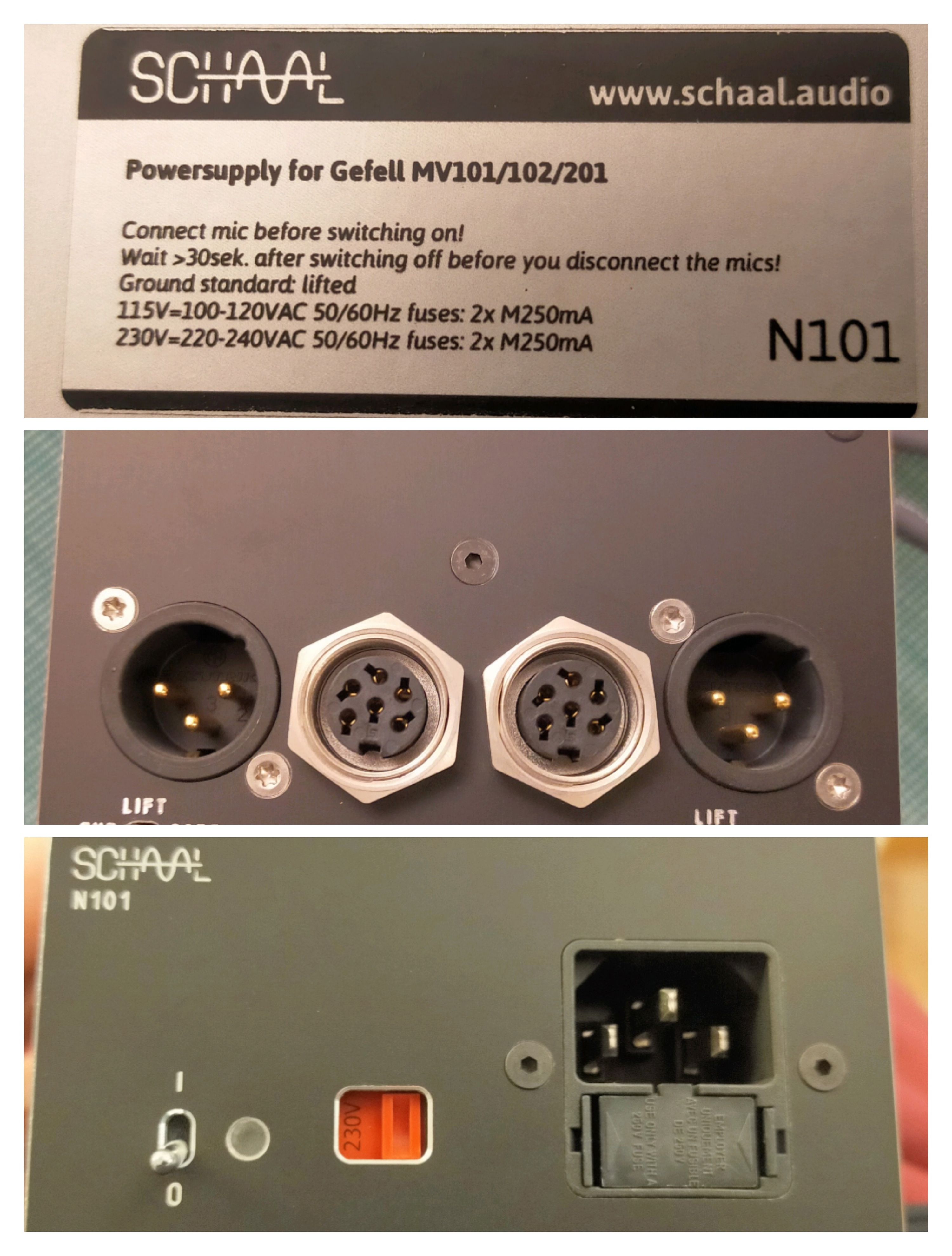

https://www.schaal.audio/bc/

RFT Din Stecker TGL-31-428 Steckverbinder Stecker 5 Pol

Hersteller - RFT
Typ - TGL-31-428
Anzahl Pole - 5

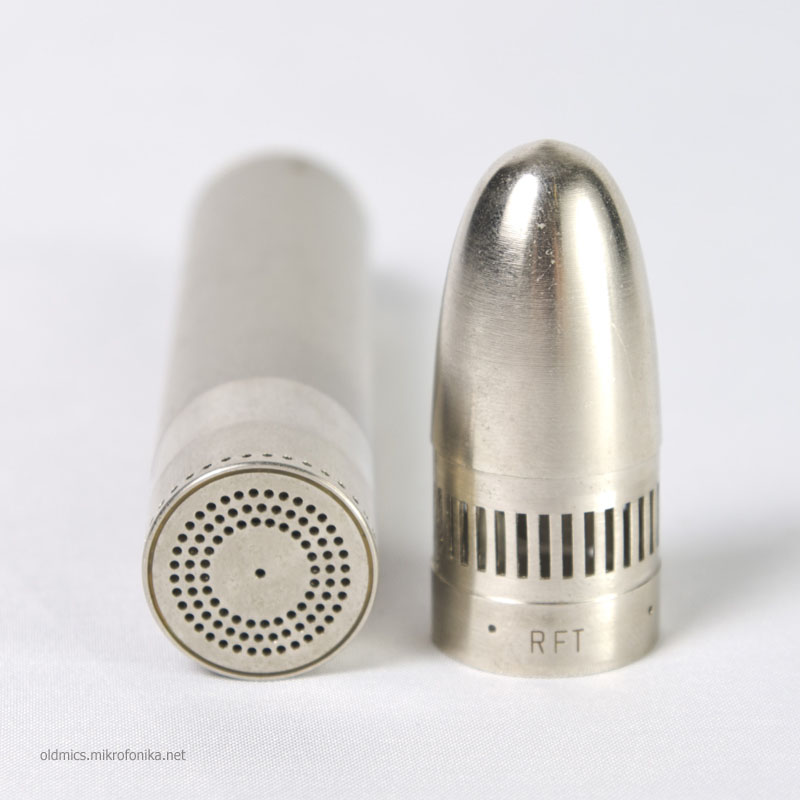

The cone-shaped cover (NK 63) enables omnidirectional sound recording while the flat one enables directional recording. The whole thing is made of metal.

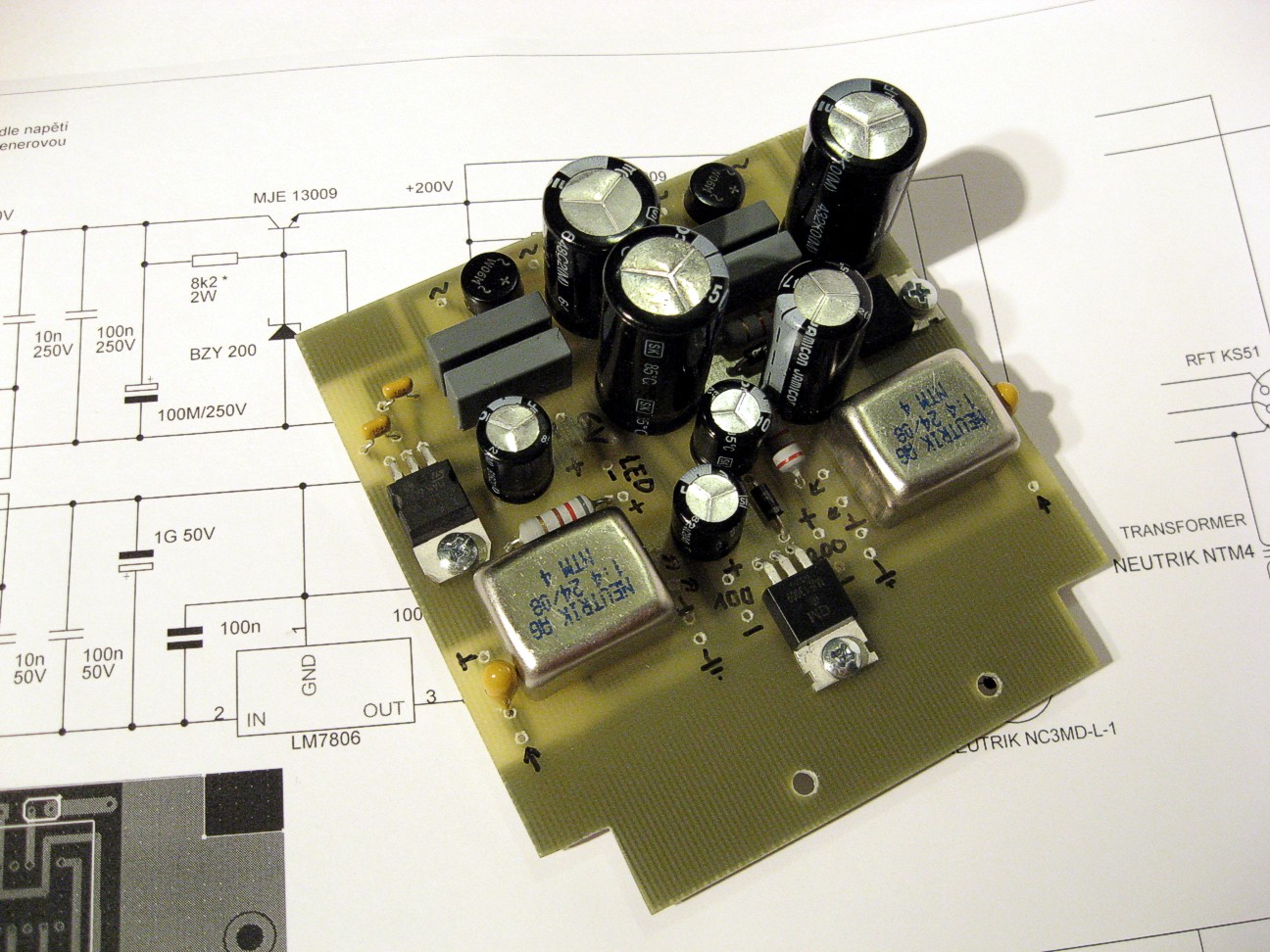

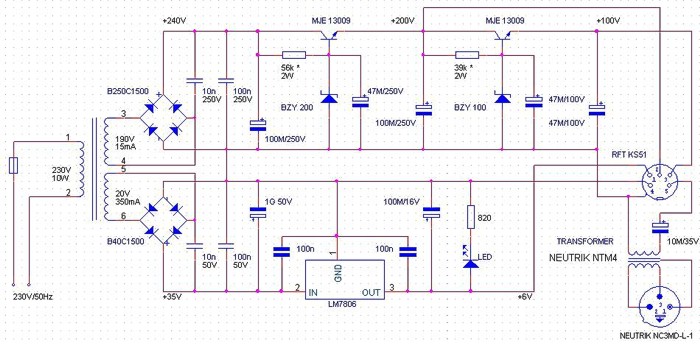

	1 - vyhřívání mikrofonu +6V, 150mA 4 - vyhřívání mikrofonu - 5 - signálový výstup z předzesilovače +20V 3 - kladné napájeni předzesilovače +95 až 100V 2 - kladné polarizačni napěti vložky +185 až 200V

https://www.elektroakustika.cz/zdroj.html
